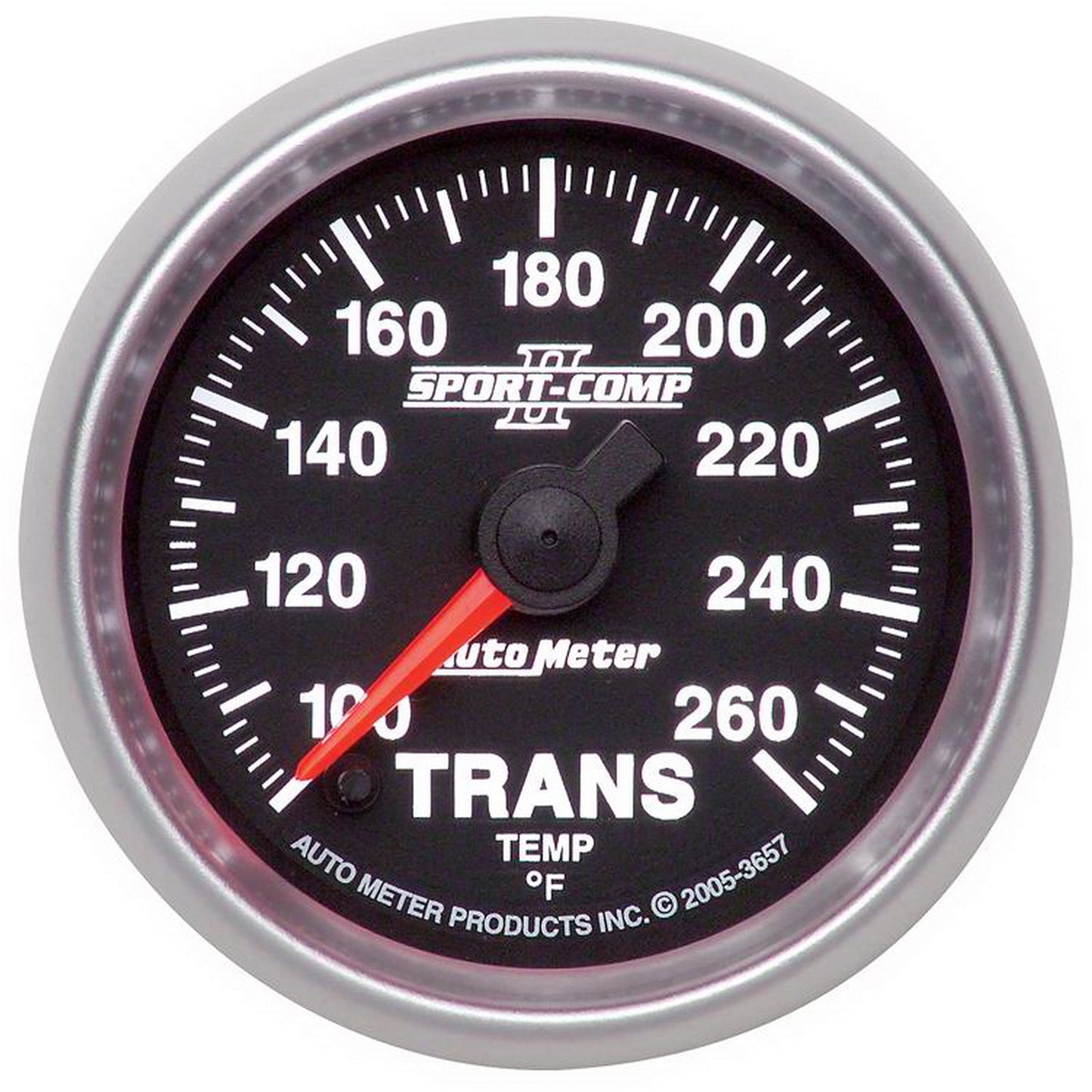

2-1/16in TRANSMISSION TEMPERATURE 100-260 Deg F SPORT-COMP II

Transmission Fluid Temperature Is The Single Biggest Contributing Factor To The Lifespan Of Your Automatic Transmission. Having An Accurate, Realtime Measurement Allows You To Know When To Downshift Or When To Take Your Foot Out Of It. Whether Youre Towing Or Simply Trying To Harness The Power Of A Built Or Boosted Motor, Autometers Digital Stepper Motor Trans Temp Gauge Will Give You The Most Accurate Possible Measurement For The Exact Temp Of Your Trans Fluid. Autometers Most Advanced 1/8In Npt Temperature Transducer Is Included As Well As A Direct Plug In Wiring Harness For Ease Of Installation. An Optional Trans Cooler Line Manifold Is Available For Another Easy Installation Option.

• Modern white LED through-the-dial lighting provides clear visibility during nighttime use
• Gauge kit includes 1/8in NPT temperature sender, 3/8in and 1/2in NPT adapters, wiring harness, mounting hardware, and detailed instructions for installation
• Includes data acquisition grade temperature sender, providing unmatched accuracy and durability even in the harshest environments
• 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system

Attributes:

• Brand Name: AutoMeter
• GTIN: 00046074036576
• Add-On: 9114;2260;2286;2287
• Bezel Color: Brushed Aluminum
• Bezel Style: Super Bezel
• Cup/Hole Size - Metric - MM: 52.4mm
• Cup/Hole Size - Standard - IN: 2-1/16in
• Dial Color: Black
• Gauge Type: Transmission Temperature
• Includes Adapter/Fitting: 3/8in NPT and 1/2in NPT adapter fittings
• Includes Mounting Hardware: 2230
• Includes Sensor Unit: 2252
• Includes Wire Harness: 5226
• Lens Style: Flat, Clear
• Lighting Color: White
• Lighting Type: LED
• Movement: Electric, Digital Stepper Motor
• Outer Bezel Diameter - Standard: 2-1/4in
• Pointer Color: Fluorescent Red
• Product Type: Gauge Transmission Temp
• Range: 100-260 deg F
• Related Item: 0423XL
• Size - Metric - MM: 52.4mm
• Size - Standard - IN: 2 1/16in

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 5.5 x 6 x 6.5 inches
• Weight: 1.1 POUNDS
