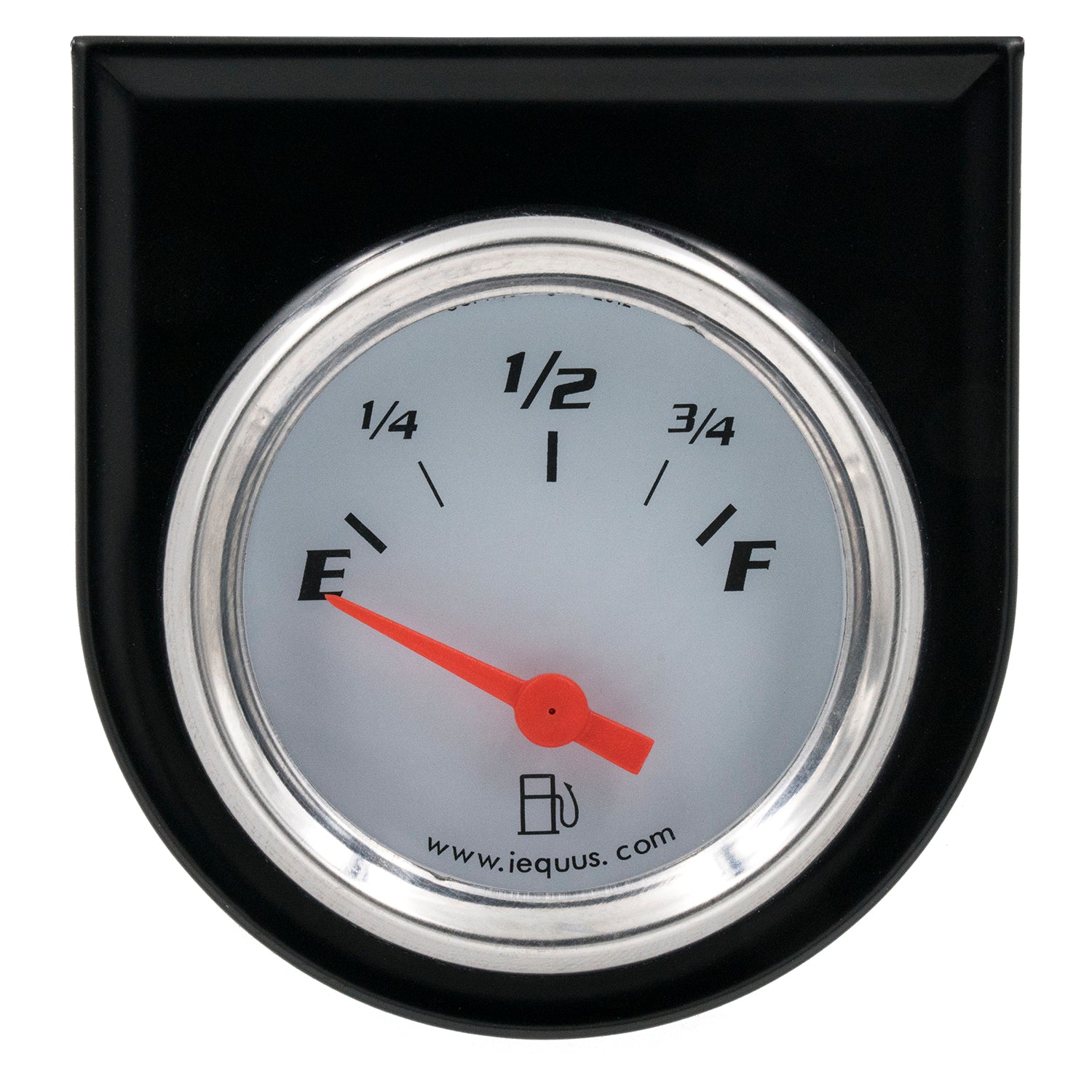

2 In. Fuel Level Gauge / GM

• Range: Empty=0 Ohm, Full=90 Ohm
• Compatible with most O.E. GM Sender or #9982 Fuel Level Sender (optional)
• Back-Lit illumination for night use
• 90 Sweep
• Does not include fuel level sender
• One year from purchase date warranty

Attributes:

• Brand Name: Equus
• GTIN: 00047923053621
• Add-On: 9982;5200;5244;5242;5268;5078
• Bezel Color: Chrome
• Bezel Style: Equus Round Shoulder
• Cup/Hole Size - Metric - MM: 51
• Cup/Hole Size - Standard - IN: 2 in.
• Dial Color: White
• Gauge Type: Fuel Level
• Includes Mounting Hardware: Yes
• Includes Sensor Unit: No
• Includes Wire Harness: No
• Lens Style: Flat, Clear
• Lighting Color: White Incandescent
• Lighting Type: Incandescent
• Mounting- Direct or Universal: Universal
• Movement: Electric, Air-Core
• Outer Bezel Diameter - Standard: 2.25
• Pointer Color: Orange
• Product Overall Depth: 2.25
• Product Overall Height: 2.25
• Product Overall Width: 2.25
• Product Type: Gauge Fuel Level
• Range: 0 O Empty / 90 O Full
• Size - Metric - MM: 52 mm
• Size - Standard - IN: 2 in.
• Upsell: 8361

Extended Information:

• Country of Origin: CN
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Weight: 0 POUNDS
