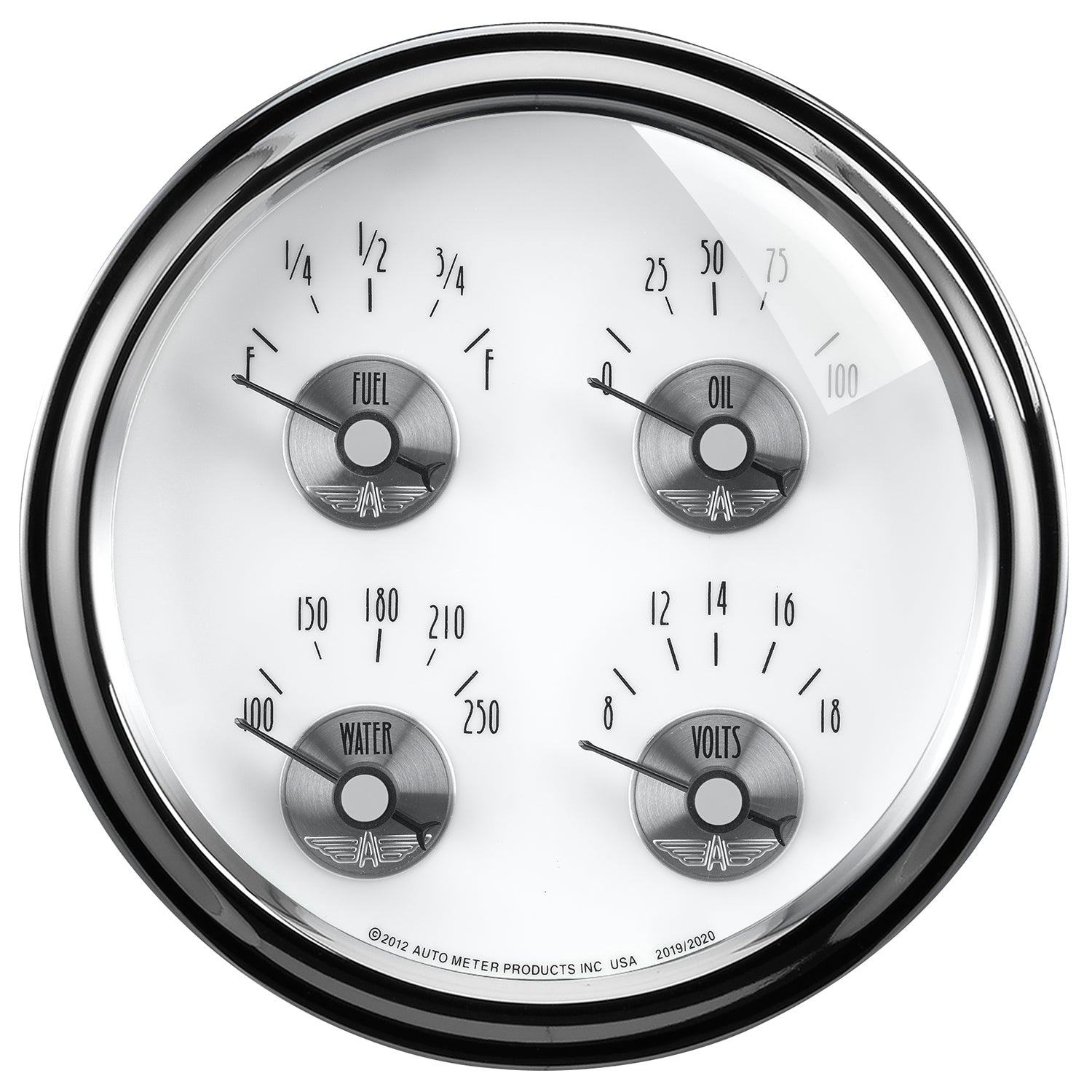

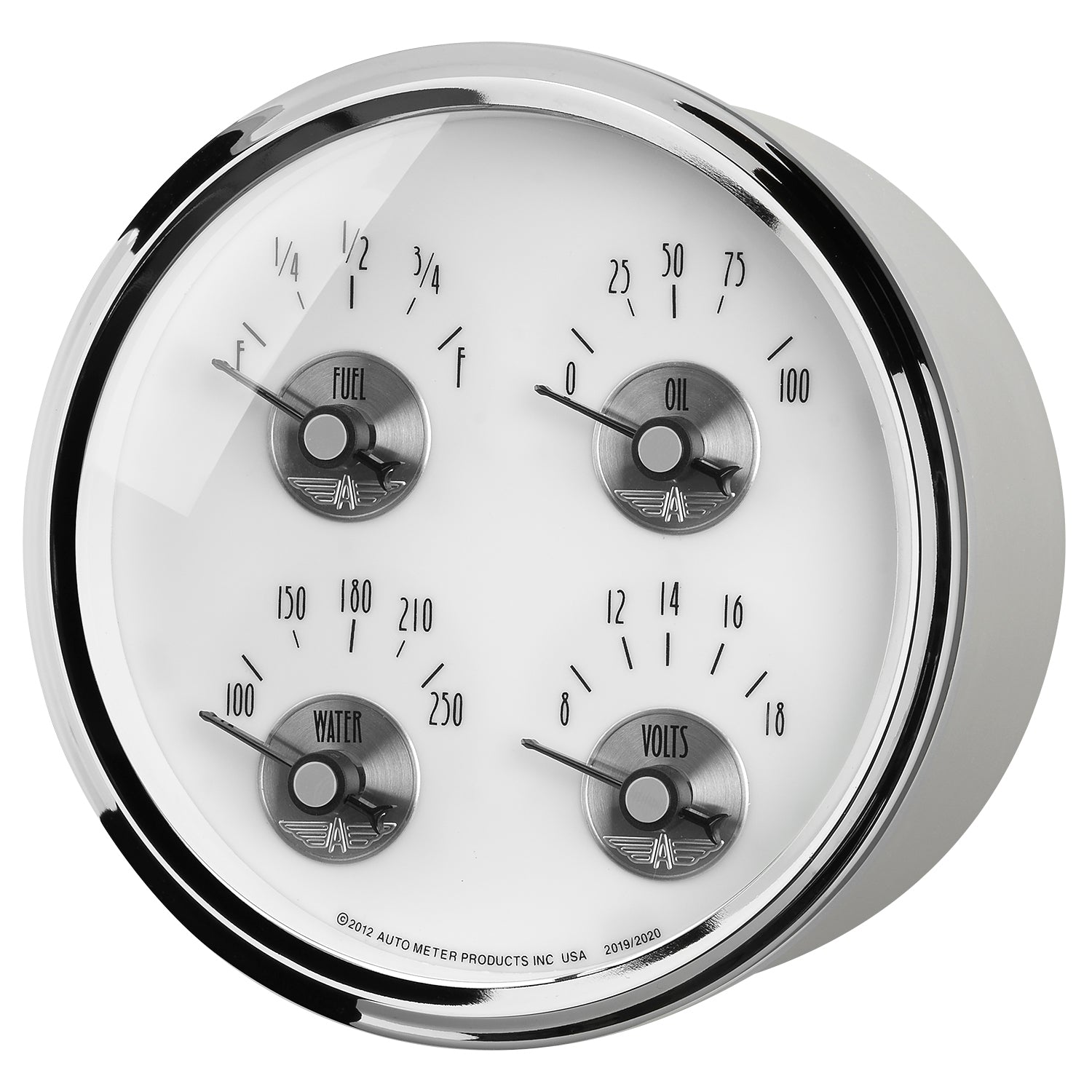

5 In. QUAD GAUGE 100 PSI/100-250 Fahrenheit/8-18V/0-90 O PRESTIGE PEARL

Sometimes Space Is Limited. The Autometer Quad Gauge Provides A Solution To Limited Dashboard Space While Providing A Clean Look. Individual Autometer Air Core Meter Movements For Each Function Provide The Accuracy And Durability Required By Even The Most Demanding Applications. Includes A Single Wire 1/8" Npt Temperature Sender And A 1/8" Npt Oil Pressure Sender. The Voltmeter Reads From 8-18V On Negative Ground Electrical Systems And Fuel Level Resistance Range Is 0 Ohms Empty To 90 Ohms Full (Compatible With Amid 60S Through Mid 90S Gm Fuel Level Senders).

• Modern white LED through-the-dial lighting provides clear visibility during nighttime use
• Works with most 1965 to 1997 Chevrolet/GM senders
• 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
• Gauge kit includes mounting hardware and detailed instructions for installation
• Autometers Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings

Attributes:

• Brand Name: AutoMeter
• GTIN: 00046074020209
• Add-On: N/A

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6 x 6 x 5 inches
• Weight: 1.75 POUNDS

PDF:
