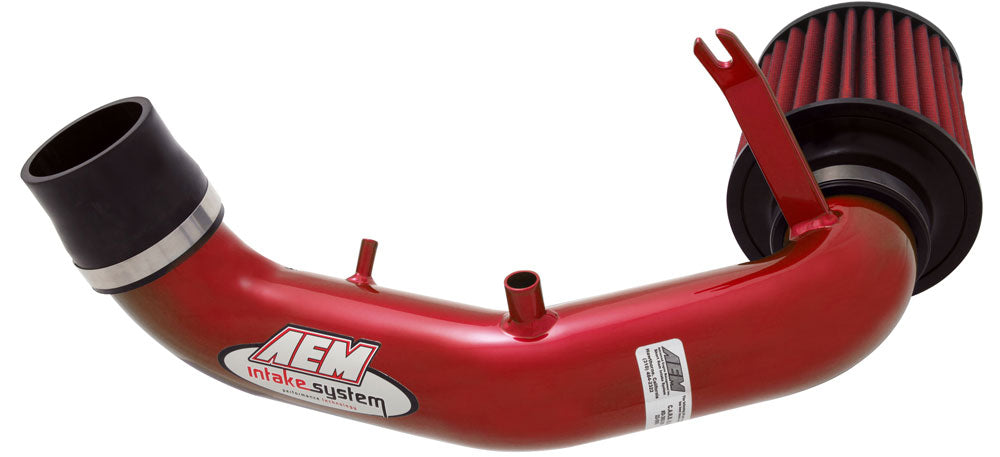

AEM AEM-22-505R AEM Short Ram Intake System

The AEM 22-505R Performance Short Ram Air Intake System has been engineered to be an affordable and easy way to boost the horsepower and torque of your engine. The restrictive factory air filter and air intake housing are replaced with this AEM air intake system which was designed, tuned and dyno-tested to fit specific Acura RSX models. Air enters the system through an oversized AEM Dryflow synthetic washable air filter for outstanding air flow, filtration and performance. The sound your engine makes when accelerating is also modified to a fuller, more aggressive resonance allowing you to hear and feel the horsepower upgrade. The intake tubing is constructed from mandrel-bent aluminum featuring a durable red powder coated finish. This air intake system was developed to accommodate the engine's factory emissions control devices including the intake air temperature sensor and intake air bypass thermal valve vacuum hose. The tapered cylinder shaped AEM Dryflow air filter is made from an oil-free, synthetic filter media that can be used for up to 100,000 miles before cleaning is needed (depending on driving conditions). The air intake system is easy to install with commonly available tools.

• Affordable and simple horsepower upgrade

Attributes:

• Brand Name: AEM Induction
• GTIN: 00840879006075
• Air Box Included: No
• Air Filter Color: Red
• Air Filter Material: Non-woven Synthetic
• Air Filter Outlet Shape: Round
• Air Filter Washable: Yes
• CARB EO Number: D-670-15
• Clamp Color/Finish: Natural
• Clamp Material: Steel
• Clamp Style: Regular
• Clamps Included: 5
• Coupler Color/Finish: Not Applicable
• Couplers Included: None
• Intake Pipe Color / Finish: Red
• Intake Pipe Material: Aluminum
• Intake Pipe Ports: All intake tube ports needed for the specified applications are included
• Mass Air Flow Sensor Adapter Included: No
• Mounting Hardware Included: Yes
• Oil Included: No
• Package Material: Paperboard
• Package Type: Box
• Product Style: AEM Short Ram Intake System
• Replacement Filter: 21-203DK
• Street Legal In All US States: Legal for use in all 50 states.
• TUV Approved (Europe): No
• Warranty: Limited Lifetime
• Weight: 5.4 lb (2.4 kg)

Extended Information:

• Country of Origin: US
• Emissions : 1
• Life Cycle Status: Available Only While Supplies Last

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 18.2500 x 14.5000 x 8.5000 inches
• Weight: 5.3800 POUNDS
